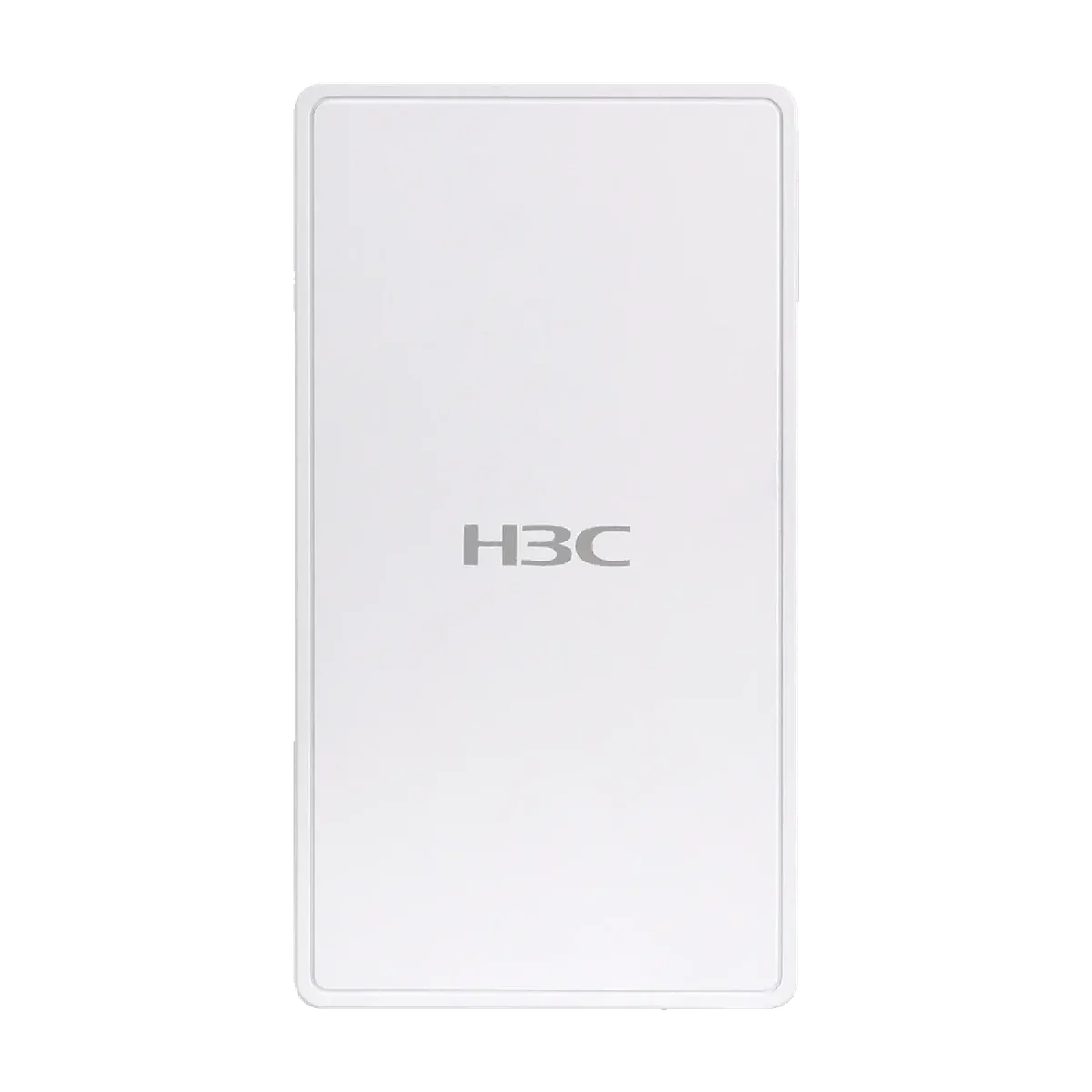

A Wi-Fi 6 wall-plate AP with extra Ethernet ports and PoE-out, ideal for hotel rooms and dorms.
Island-wide delivery to all 25 districts
| Weight | 0.3kg |
|---|---|
| Dimensions (W × D × H) | 160mm X 86mm X 39mm (without mounting brackets) |

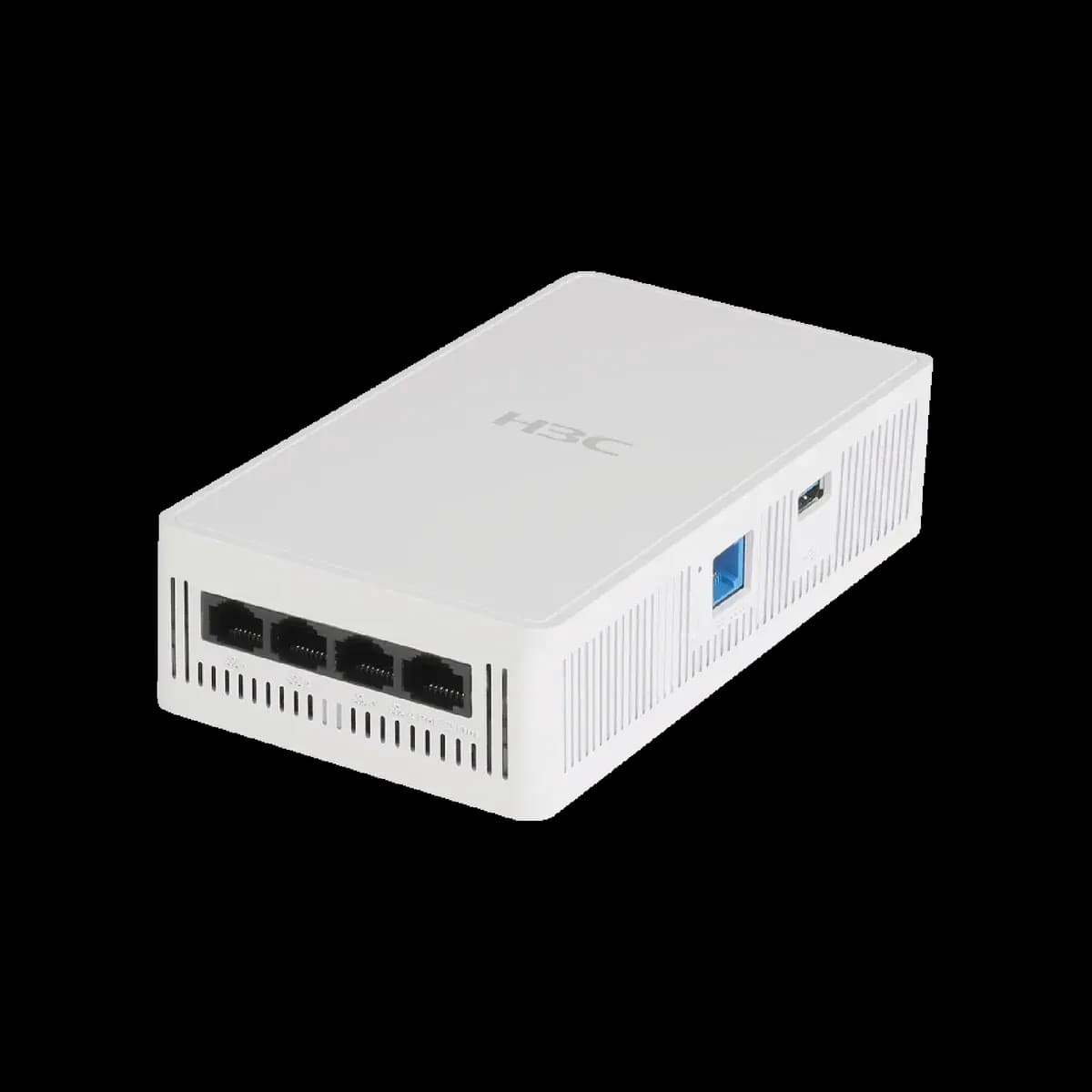

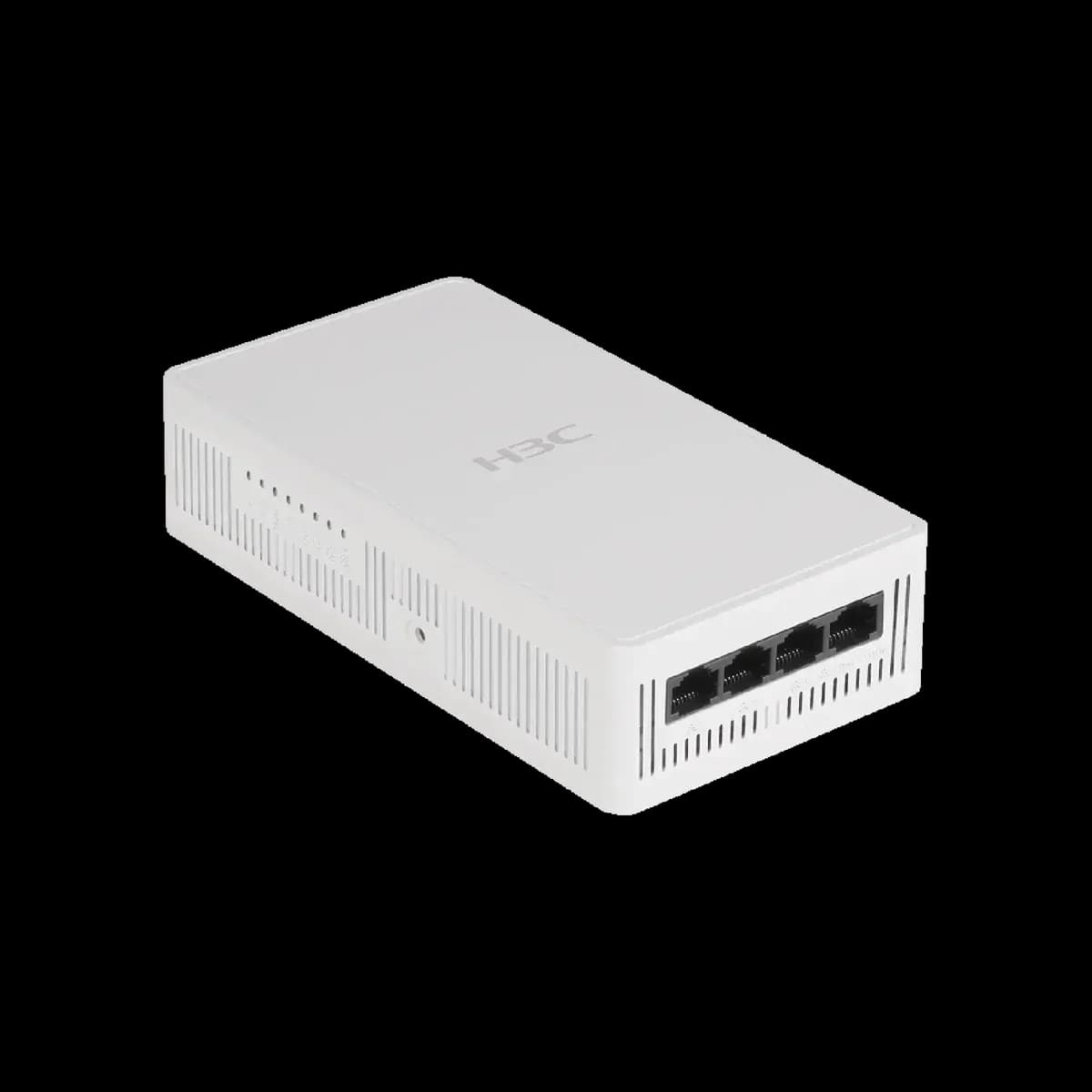

| Interface | Front panel: 1x 100/1000M Ethernet port, RJ-45, PoE output 3x 100/1000M Ethernet port, RJ-45 Back panel: 1x uplink 100/1000M Ethernet port, RJ-45, PoE input 1x uplink 1000M SFP port |
| Console port | 1 x Management console port (RJ-45) |
| USB port | 1 x USB 2.0 at 2.5W |
| PoE input | 1 x uplink 100/1000M Ethernet port, 802.3at/af |
| PoE output | 1 x 100/1000M Ethernet port, 802.3af |
| Local power supply | 54V DC (Phoenix Connector) power adapter (sold separately) |
| Antenna type | Built-in omni-directional antenna |
| Antenna Gain | 5GHz peak gain: 6dBi 2.4GHz peak gain: 4dBi Note: The equivalent antenna gain is 5dBi in 5GHz and 3dBi in 2.4GHz |
| Built-in IoT module | BLE5.1 |
| Frequency bands | 2.400 to 2.4835GHz ISM 5.150 to 5.250GHz U-NII-1 5.250 to 5.350GHz U-NII-2A 5.470 to 5.725GHz U-NII-2C 5.725 to 5.850GHz U-NII-3/ISM Note: The available bands and channels are dependent on the configured regulatory domain (country) |
| Modulation technology | 802.11b: Direct-sequence spread spectrum (DSSS) 802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM) 802.11ax: Orthogonal frequency-division multiple access (OFDMA) |
| Modulation mode | 11b: BPSK, QPSK, CCK 11a/g/n: BPSK, QPSK, 16QAM, 64QAM 11ac: BPSK, QPSK, 16QAM, 64QAM, 256QAM 11ax: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM |
| Data rates (Mbps) | 802.11b: 1, 2, 5.5, 11 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 802.11n: 6.5 to 600 (NSS = 1 to 4, HT20 to HT40) 802.11ac: 6.5 to 6,933 (MCS0 to MCS9, NSS = 1 to 8, VHT20 to VHT160) 802.11ax: 7.3 to 9,608 (MCS0 to MCS11, NSS = 1 to 8, HE20 to HE160) |
| Maximum transmit power | 5GHz: 23 dBm 2.4GHz: 23 dBm Note: Transmit power is multi-chain combined power, no antenna gain is included. The actual transmit power depends on local laws and regulations |
| Adjustable power granularity | Configurable in increments of 1dBm |
| Reset button | Restoration to factory default, AP mode control(Cloudap/Fitap) |
| Installation | Wall mounting/ceiling mounting, the mounting bracket has been preinstalled on the back of the AP |
| Indicators (LED) | Yellow/green/blue status LEDs for different working states indicate boot loader status, association status, operating status, and fault states of the system |
| Temperature | Operating temperature: 0°C to +40°C Storage temperature: –40°C to +70°C |
| Humidity | Operating humidity: 5% to 95% (non-condensing) Storage humidity: 5% to 95% (non-condensing) |
| Protection class | IP31 |
| Surge protection | Common Mode：4KV |
| Overall power consumption | 31.5W (including PSE and USB) 14W (excluding PSE and USB) Note: Power required at the power source equipment (PSE) will depend on the cable length and other environmental issues |
| Safety standards | IEC/EN 62368-1 GB 4943.1 SRRC |
| EMC standards | EN 301 489-1 EN 301 489-3 EN 301 489-17 EN 60601-1-2 EN 55032 EN 55035 |
| Radio standards | ETSI EN 300 328 ETSI EN 301 893 ETSI EN 300 440 FCC Part 15E |
