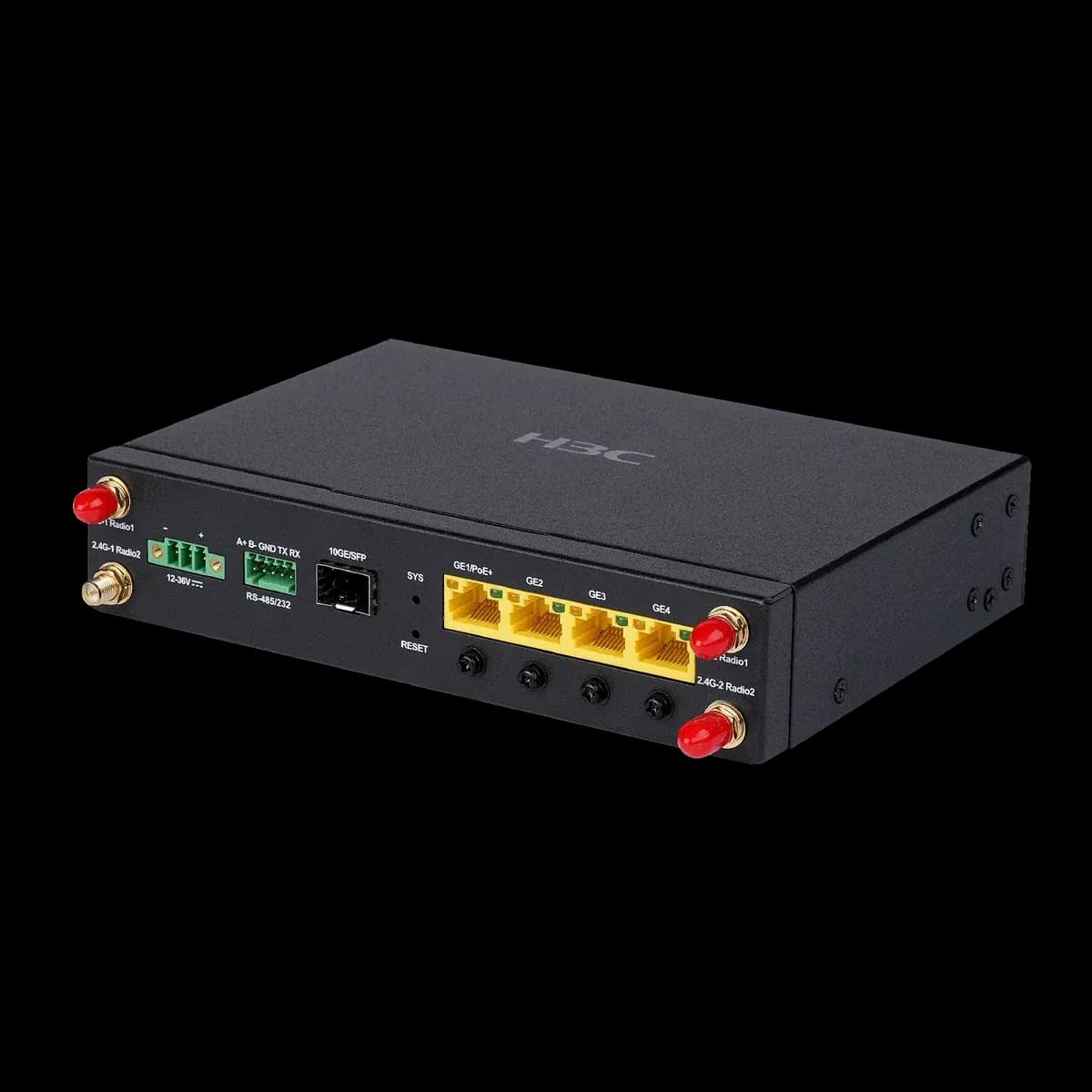

An industrial Wi-Fi 7 AP for production lines, AGVs and smart ports, rated IP52 and -40 °C to 60 °C.
Island-wide delivery to all 25 districts
| Weight | 1.15kg |
|---|---|
| Dimensions (W × D × H) | 128 mm × 180 mm × 38 mm (without mounting brackets) |

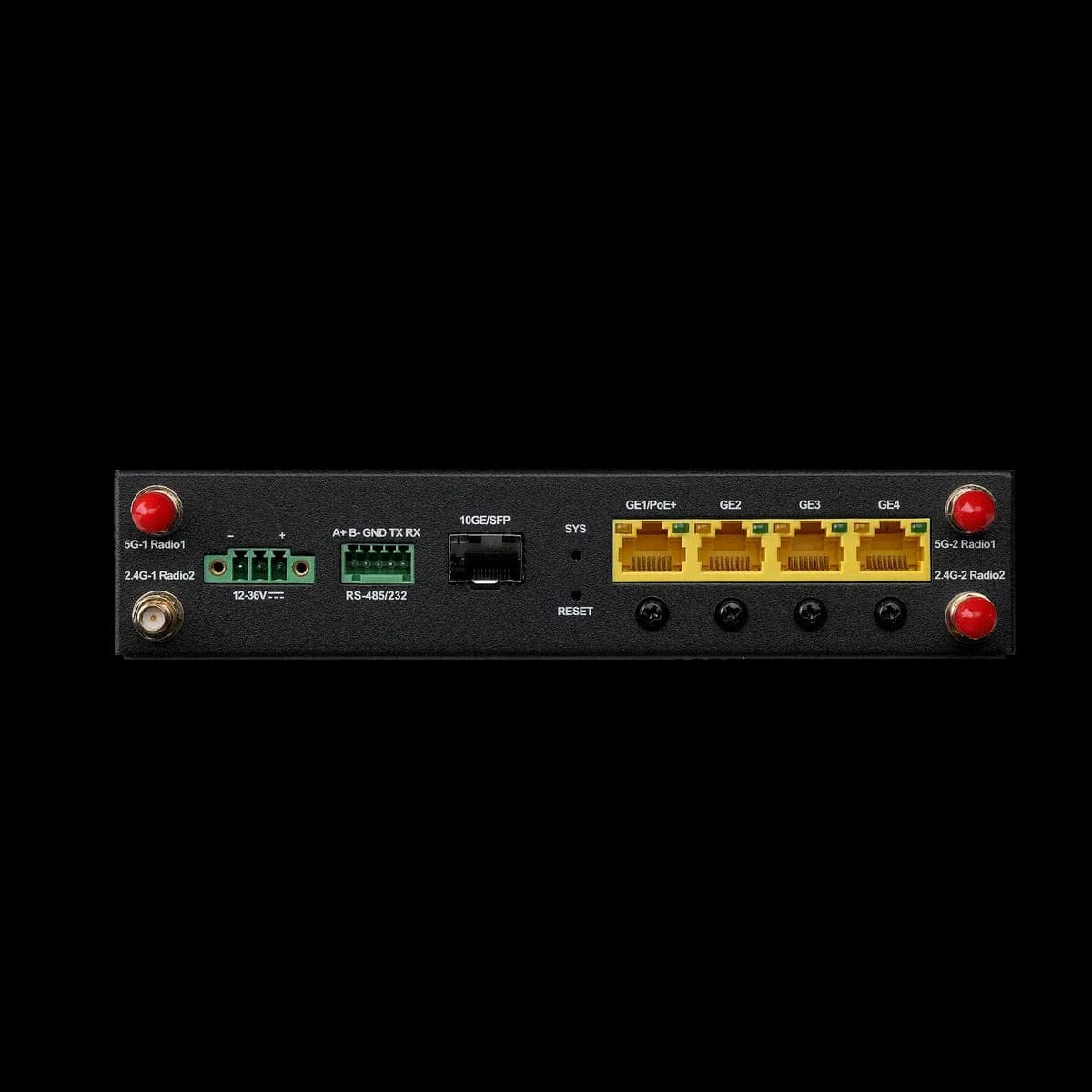

| Interface | 4 x 10/100/1000M Ethernet, RJ-45 1 x 1000M/2.5G/5G/10G optical port, SFP+ |
| Console port | 1 x RS232 port, 5-pin Phoenix connector 1 x RS485 port, 5-pin Phoenix connector |
| PoE input | 1 x 10/100/1000M Ethernet, RJ-45, PoE input |
| Local power supply | Come with Phoenix connector |
| Antenna type | External antenna |
| Antenna gain | The Antenna Gains are dependent on External antenna |
| Frequencybands | 2.400 to 2.4835GHz ISM 5.150 to 5.250GHz U-NII-1 5.250 to 5.350GHz U-NII-2A 5.470 to 5.725GHz U-NII-2C 5.725 to 5.850GHz U-NII-3/ISM Note: The available bands and channels are dependent on the configured regulatory domain (country) |
| Modulation technology | 802.11b: Direct-sequence spread spectrum (DSSS) 802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM) 802.11ax/be: Orthogonal frequency-division multiple access (OFDMA) |
| Modulation mode | 11b: BPSK, QPSK, CCK 11a/g/n: BPSK, QPSK, 16QAM, 64QAM 11ac: BPSK, QPSK, 16QAM, 64QAM, 256QAM 11ax: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM 11be: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM, 4096QAM |
| Data rates (Mbps) | 802.11b: 1, 2, 5.5, 11 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 802.11n: 6.5 to 600 (NSS = 1 to 4, HT20 to HT40) 802.11ac: 6.5 to 6,933 (MCS0 to MCS9, NSS = 1 to 8, VHT20 to VHT160) 802.11ax: 7.3 to 9,608 (MCS0 to MCS11, NSS = 1 to 8, HE20 to HE160) 802.11be: 7.3 to 23,059 (MCS0 to MCS13, NSS = 1 to 8, EHT20 to EHT160) |
| Maximum transmit power | 5G: 23 dBm 2.4G: 23 dBm Note: Transmit power is multi-chain combined power, no antenna gain is included. The actual transmit power depends on local laws and regulations Note: To comply with spectrum regulatory requirements across different regions, the 6GHz RF (Radio Frequency) function of the device will be in a disabled state in countries/regions where the use of the 6GHz band is prohibited. Once the policy for 6GHz band usage in such countries/regions is implemented, this function can be officially activated in conjunction with future software update processes, ensuring the device operation |
| Adjustable power granularity | Configurable in increments of 1dBm |
| Reset button | Restoration to factory default, AP mode control(CloudAP/FitAP) |
| Installation | Side mounting ears/bottom mounting ears/rear DIN rail mounting, with the mounting ears included as standard; DIN rail clips require separate purchase |
| Indicators (LED) | Yellow/green/blue status LEDs for different working states indicate boot loader status, association status, operating status, and fault states of the system |
| Temperature | Operating temperature: -40°C to +60°C Storage temperature: -40°C to +85°C |
| Humidity | Operating humidity: 5% to 95% (non-condensing) Storage humidity: 5% to 95% (non-condensing) |
| Protection class | IP52 |
| Surge protection | Common Mode：6KV |
| Overall power consumption | Power Source / 5GHz Radio / 2.4GHz Radio / Link speed / Max PoE power consumption |
| 802.3at | 2*2 / 1Gbps / 16.2W |
| 802.3af | 1*1 / 1Gbps / 11.4W |
| POE injector | 2*2 / 1Gbps / 16.2W |
| Safety standards | IEC/EN 62368-1 GB 4943.1 |
| EMC standards | EN 301 489-1 EN 301 489-3 EN 301 489-17 EN 60601-1-2 EN 55032 EN 55035 |
| Radio standards | ETSI EN 300 328 ETSI EN 301 893, FCC Part 15E, ETSI EN 300 440 ETSI EN 303 687 |
