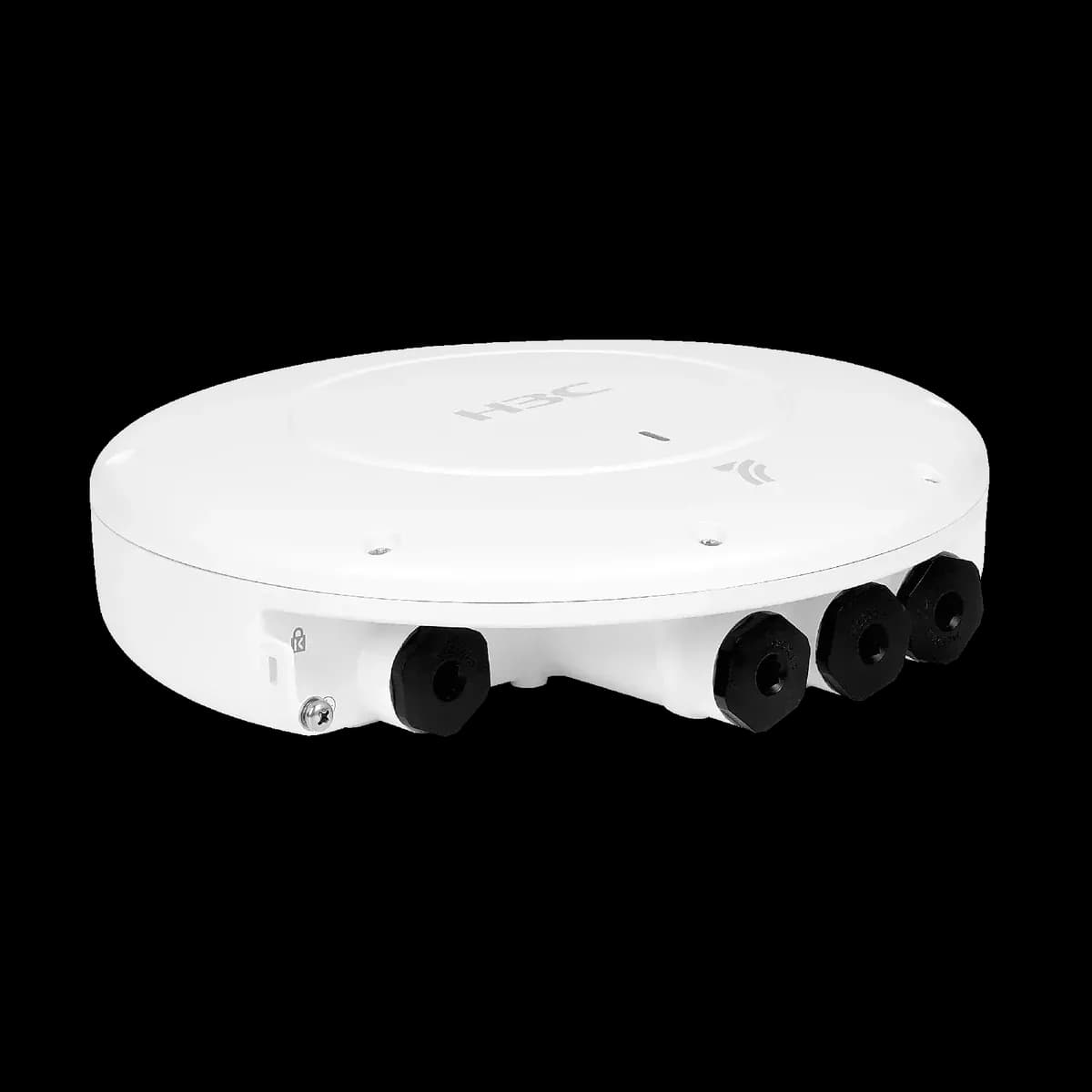

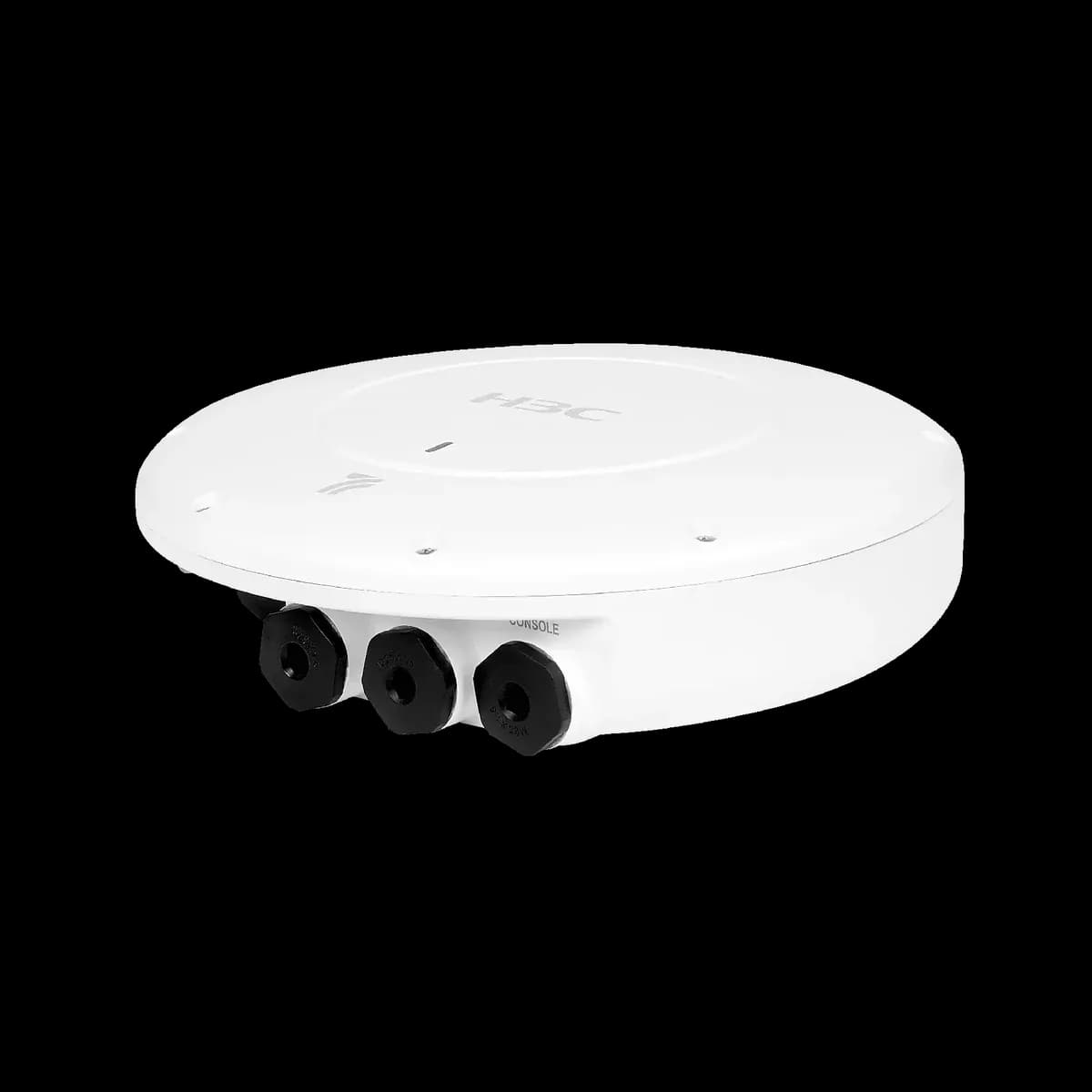

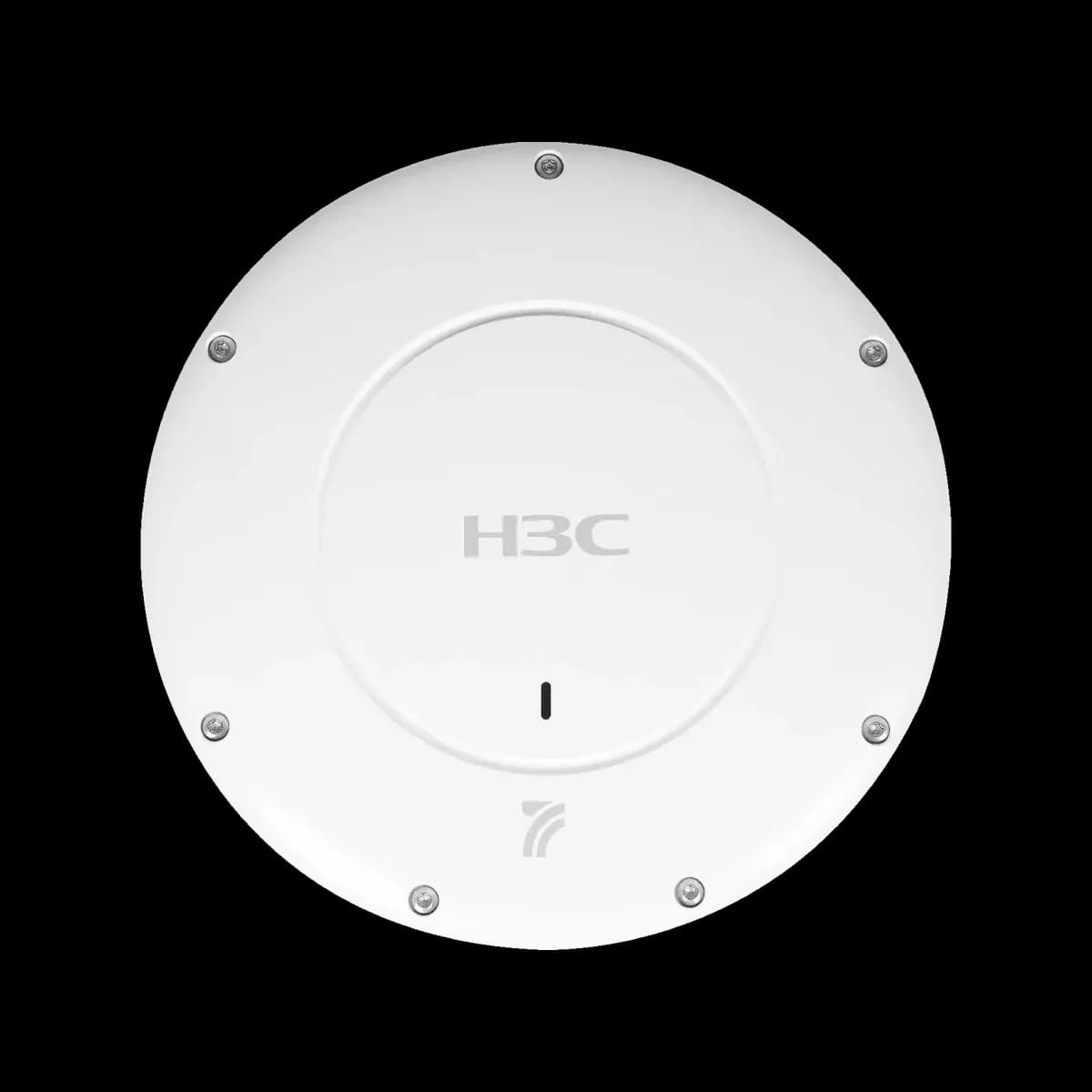

An outdoor Wi-Fi 7 AP with 2.4 and 5 GHz radios, 160 MHz channels and redundant copper/fibre uplinks.
Island-wide delivery to all 25 districts
| Weight | 1.336kg |
|---|---|
| Dimensions (W × D × H) | 240 mm × 240 mm × 65 mm (without mounting brackets) |
| Interface | 1 x 100/1000M/2.5G Ethernet, RJ-45, PoE input 1 x 1000M/10G optical port, SFP+, PoE input |
| Console port | 1 x Management console port (RJ-45) |
| USB port | 1 x USB 2.0 at 2.5W |
| PoE input | 1 x 100/1000M/2.5G Ethernet, 802.3at 1 x 1000M/10G optical port, 802.3at |
| Local power supply | POE injector (sold separately) |
| Antenna type | Built-in omni-directional antenna |
| Antenna gain | 5GHz peak gain: 4.4dBi 2.4GHz peak gain: 4.6dBi Note: The equivalent antenna gain is 2.8dBi in 5GHz and 2.9dBi in 2.4GHz |
| Frequencybands | 2.400 to 2.4835GHz ISM 5.150 to 5.250GHz U-NII-1 5.250 to 5.350GHz U-NII-2A 5.470 to 5.725GHz U-NII-2C 5.725 to 5.850GHz U-NII-3/ISM Note: The available bands and channels are dependent on the configured regulatory domain (country) |
| Modulation technology | 802.11b: Direct-sequence spread spectrum (DSSS) 802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM) 802.11ax/be: Orthogonal frequency-division multiple access (OFDMA) |
| Modulation mode | 11b: BPSK, QPSK, CCK 11a/g/n: BPSK, QPSK, 16QAM, 64QAM 11ac: BPSK, QPSK, 16QAM, 64QAM, 256QAM 11ax: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM 11be: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM, 4096QAM |
| Data rates (Mbps) | 802.11b: 1, 2, 5.5, 11 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 802.11n: 6.5 to 600 (NSS = 1 to 4, HT20 to HT40) 802.11ac: 6.5 to 6,933 (MCS0 to MCS9, NSS = 1 to 8, VHT20 to VHT160) 802.11ax: 7.3 to 9,608 (MCS0 to MCS11, NSS = 1 to 8, HE20 to HE160) 802.11be: 7.3 to 23,059 (MCS0 to MCS13, NSS = 1 to 8, EHT20 to EHT160) |
| Maximum transmit power | 5G: 26 dBm 2.4G: 30 dBm Note: Transmit power is multi-chain combined power, no antenna gain is included. The actual transmit power depends on local laws and regulations Note: To comply with spectrum regulatory requirements across different regions, the 6GHz RF (Radio Frequency) function of the device will be in a disabled state in countries/regions where the use of the 6GHz band is prohibited. Once the policy for 6GHz band usage in such countries/regions is implemented, this function can be officially activated in conjunction with future software update processes, ensuring the device operation |
| Adjustable power granularity | Configurable in increments of 1dBm |
| Reset button | Restoration to factory default, AP mode control(CloudAP/FitAP) |
| Kensington | Kensington security slot |
| Installation | Wall mounting/Pole mounting, the AP does not come with the mounting bracket by default and must be purchased separately |
| Indicators (LED) | Yellow/green/blue status LEDs for different working states indicate boot loader status, association status, operating status, and fault states of the system |
| Temperature | Operating temperature: -40°C to +65°C Storage temperature: -40°C to +85°C |
| Humidity | Operating humidity: 0% to 100% (non-condensing) Storage humidity: 0% to 100% (non-condensing) |
| Protection class | IP68 |
| Surge protection | Common Mode：6KV |
| Overall power consumption | Power Source / 5GHz Radio / 2.4GHz Radio / Link speed / USB / Max PoE power consumption |
| 802.3at | 2*2 / 2.5Gbps / - / 25.5W |
| 802.3af | - |
| POE injector | 2*2 / 2.5Gbps / - / 25.5W |
| Safety standards | IEC/EN 62368-1 GB 4943.1 |
