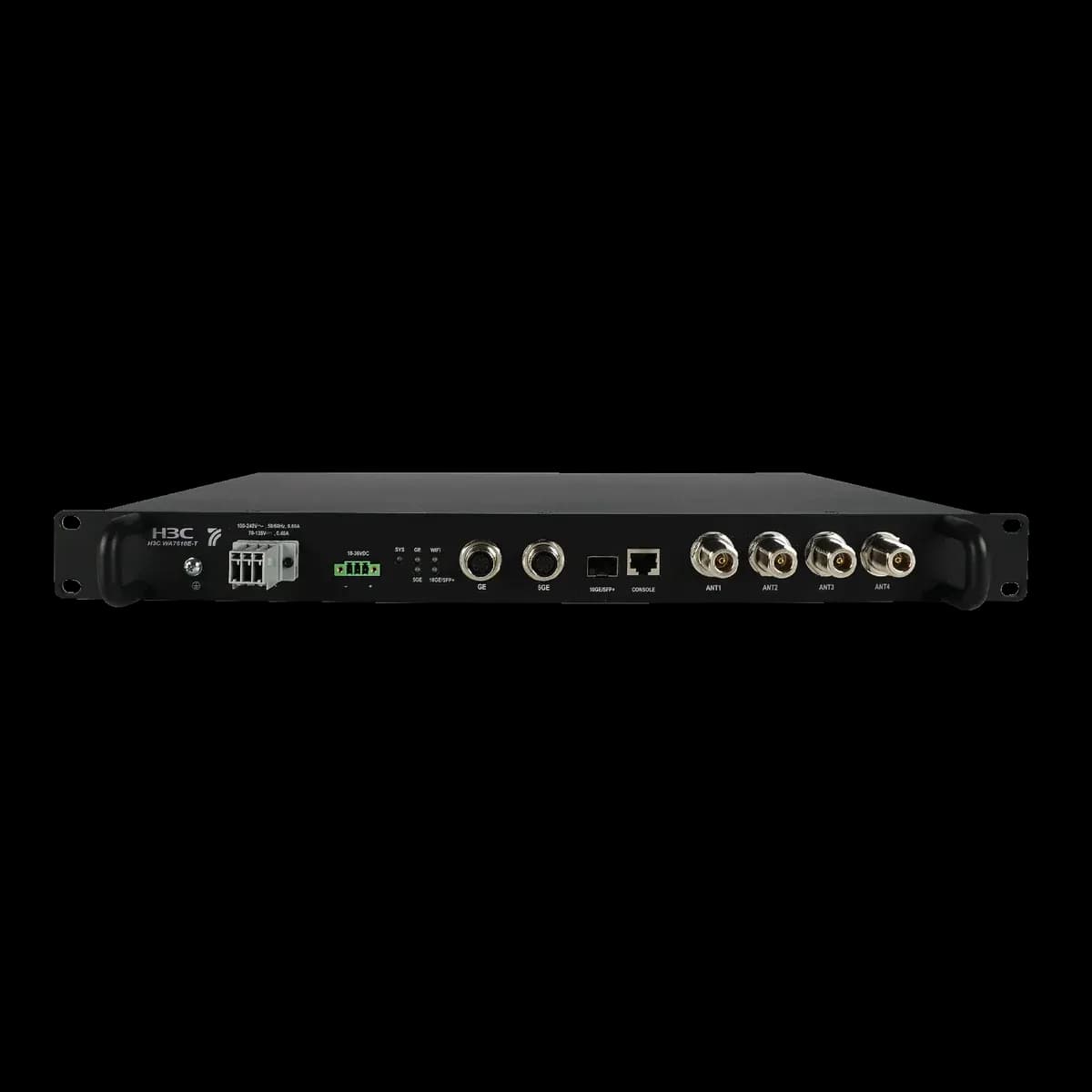

H3C WA6628E-T Wi-Fi 6 Rail Transit Access Point
An all-metal Wi-Fi 6 AP for trains and vehicles, with M12 connectors and resistance to strong electromagnetic interference.
Price on Request
A single-radio 4x4 Wi-Fi 7 AP for rail and vehicle networks, with M12 connectors and wide-temperature components.
Island-wide delivery to all 25 districts
| Weight | 3.84kg |
|---|---|
| Dimensions (W × D × H) | 260 mm × 482.6 mm × 43.7 mm (without mounting brackets) |
| Interface | 1 x 100/1000M/2.5G/5G Ethernet, M12 connector 1 x 1000M/10G optical port, SFP+ 1 x 10/100/1000M Ethernet, M12 connector |
| Console port | 1 x Management console port (RJ-45) |
| Local power supply | 100–240 VAC or 70–143 VDC (one 3-pin WAGO connector) 18–36 VDC (one 3-pin Phoenix connector) |
| Antenna type | External antenna |
| Antenna gain | The Antenna Gains are dependent on External antenna |
| Frequencybands | 2.400 to 2.4835GHz ISM 5.150 to 5.250GHz U-NII-1 5.250 to 5.350GHz U-NII-2A 5.470 to 5.725GHz U-NII-2C 5.725 to 5.850GHz U-NII-3/ISM 5.850 to 5.895 GHz U-NII-4 5.925 to 6.425GHz U-NII-5 6.425 to 6.525GHz U-NII-6 6.525 to 6.875GHz U-NII-7 6.875 to 7.125GHz U-NII-8 Note: The available bands and channels are dependent on the configured regulatory domain (country) |
| Modulation technology | 802.11b: Direct-sequence spread spectrum (DSSS) 802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM) 802.11ax/be: Orthogonal frequency-division multiple access (OFDMA) |
| Modulation mode | 11b: BPSK, QPSK, CCK 11a/g/n: BPSK, QPSK, 16QAM, 64QAM 11ac: BPSK, QPSK, 16QAM, 64QAM, 256QAM 11ax: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM 11be: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM, 4096QAM |
| Data rates (Mbps) | 802.11b: 1, 2, 5.5, 11 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 802.11n: 6.5 to 600 (NSS = 1 to 4, HT20 to HT40) 802.11ac: 6.5 to 6,933 (MCS0 to MCS9, NSS = 1 to 8, VHT20 to VHT160) 802.11ax: 7.3 to 9,608 (MCS0 to MCS11, NSS = 1 to 8, HE20 to HE160) 802.11be: 7.3 to 23,059 (MCS0 to MCS13, NSS = 1 to 8, EHT20 to EHT320) |
| Maximum transmit power | 6G: 30 dBm 5G: 30 dBm 2.4G: 30 dBm Note: Transmit power is multi-chain combined power, no antenna gain is included. The actual transmit power depends on local laws and regulations Note: To comply with spectrum regulatory requirements across different regions, the 6GHz RF (Radio Frequency) function of the device will be in a disabled state in countries/regions where the use of the 6GHz band is prohibited. Once the policy for 6GHz band usage in such countries/regions is implemented, this function can be officially activated in conjunction with future software update processes, ensuring the devic |
| Adjustable power granularity | Configurable in increments of 1dBm |
| Installation | Rack /slide rails mounting, the AP does not come with the mounting bracket by default and must be purchased separately |
| Indicators (LED) | Yellow/green/blue status LEDs for different working states indicate boot loader status, association status, operating status, and fault states of the system |
| Temperature | Operating temperature: –40°C to +55°C Storage temperature: –40°C to +85°C Note: The value may vary depending on the installation environment. |
| Humidity | Operating humidity: 0% to 100% (non-condensing) Storage humidity: 0% to 100% (non-condensing) |
| Protection class | IP42 |
| Surge protection | Common Mode：6KV |
| Overall power consumption | Power Source / 6GHz/5GHz/2.4GHz Radio / Link speed / Max Power consumption |
| Safety standards | IEC/EN 62368-1 GB 4943.1 |
| EMC standards | EN 301 489-1 EN 301 489-3 EN 301 489-17 EN 55032 EN 55035 |
| Radio standards | ETSI EN 300 328 ETSI EN 301 893 FCC Part 15E ETSI EN 303 687 |
| RoHS standards | DIRECTIVE 2011/65/EU EN IEC 63000:2018 |
| Health standards | EN 50385:2017 EN IEC 62311:2020 |
| Vibration&Impact standards | GB/T 2423.56-2018 GB/T 2423.5-2019 GB/T 21563-2018 IEC 61373:2010 |
| MTBF (25°C) | 836580 hours |
| Product capabilities | Basic information / On-board AP, 802.11a/b/g/n/ac/ac Wave 2/ax/be |
