Price on Request

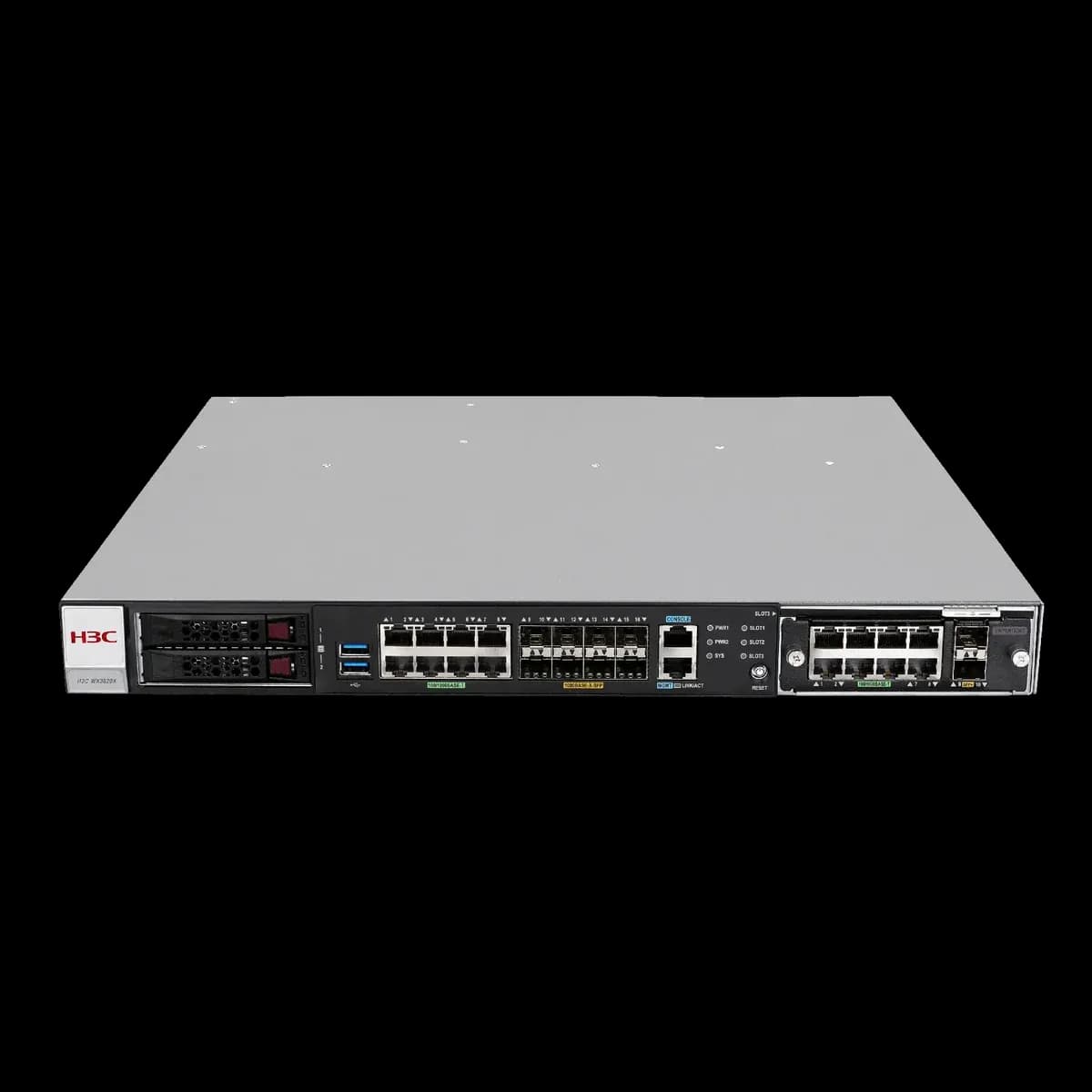

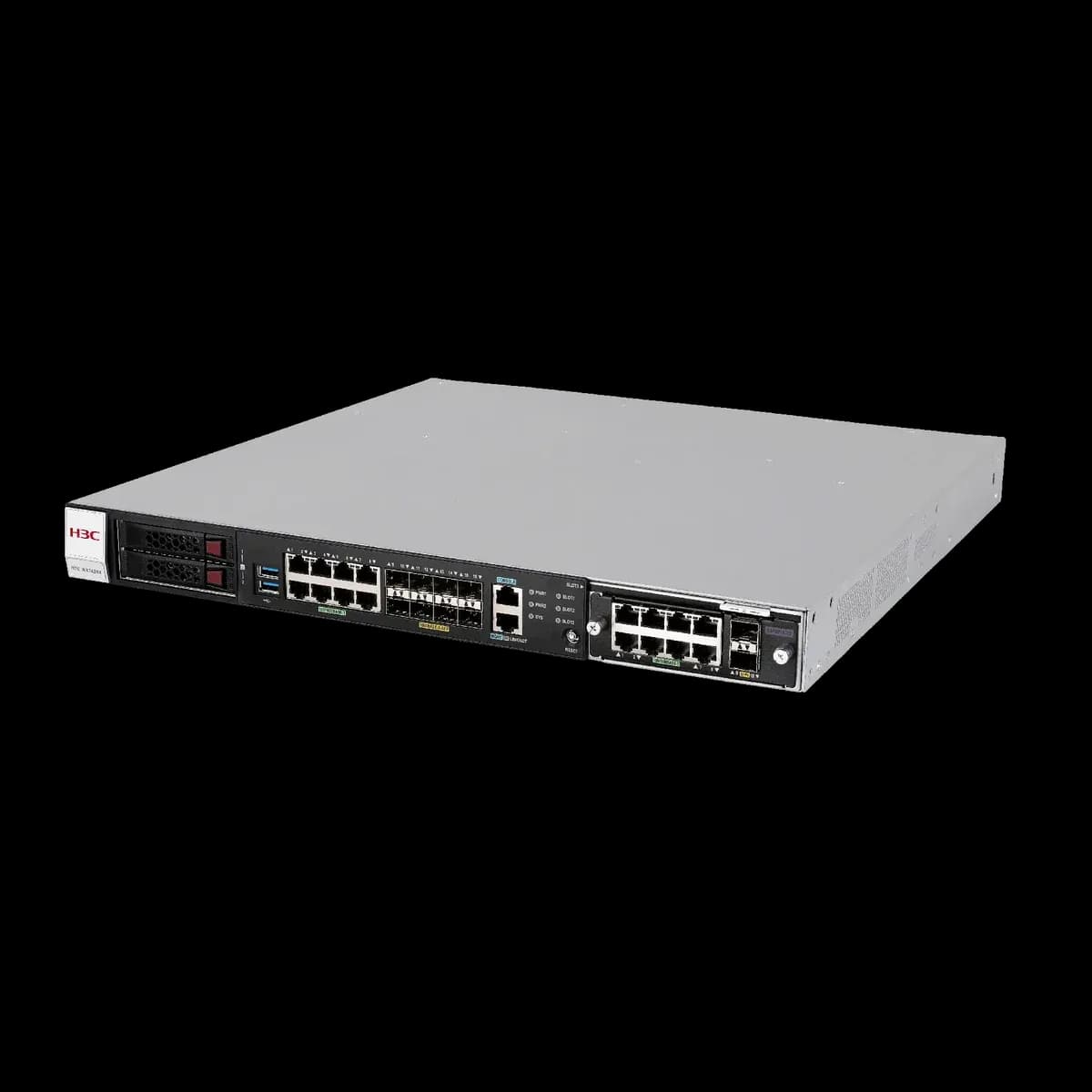

An enterprise wireless controller for up to 768 APs and 15,360 clients, with ISSU and redundant pluggable power.
Island-wide delivery to all 25 districts
| Weight | 9kg (installed with dual power supplies) |
|---|---|
| Dimensions (W × D × H) | 440 mm × 435 mm × 44 mm |
| Interface | Fixed: 8 × GE ports 8 × SFP ports Expandable to: 8 × GE ports 2 × SFP+ ports Note: EWPXM1XG03 Expansion Module (8*GE+2*SFP+) |
| Console port | 1 x Out-of-Band Management Interface (OOBM) |
| USB port | 2 x USB 2.0 |
| Throughput | 20Gbps |

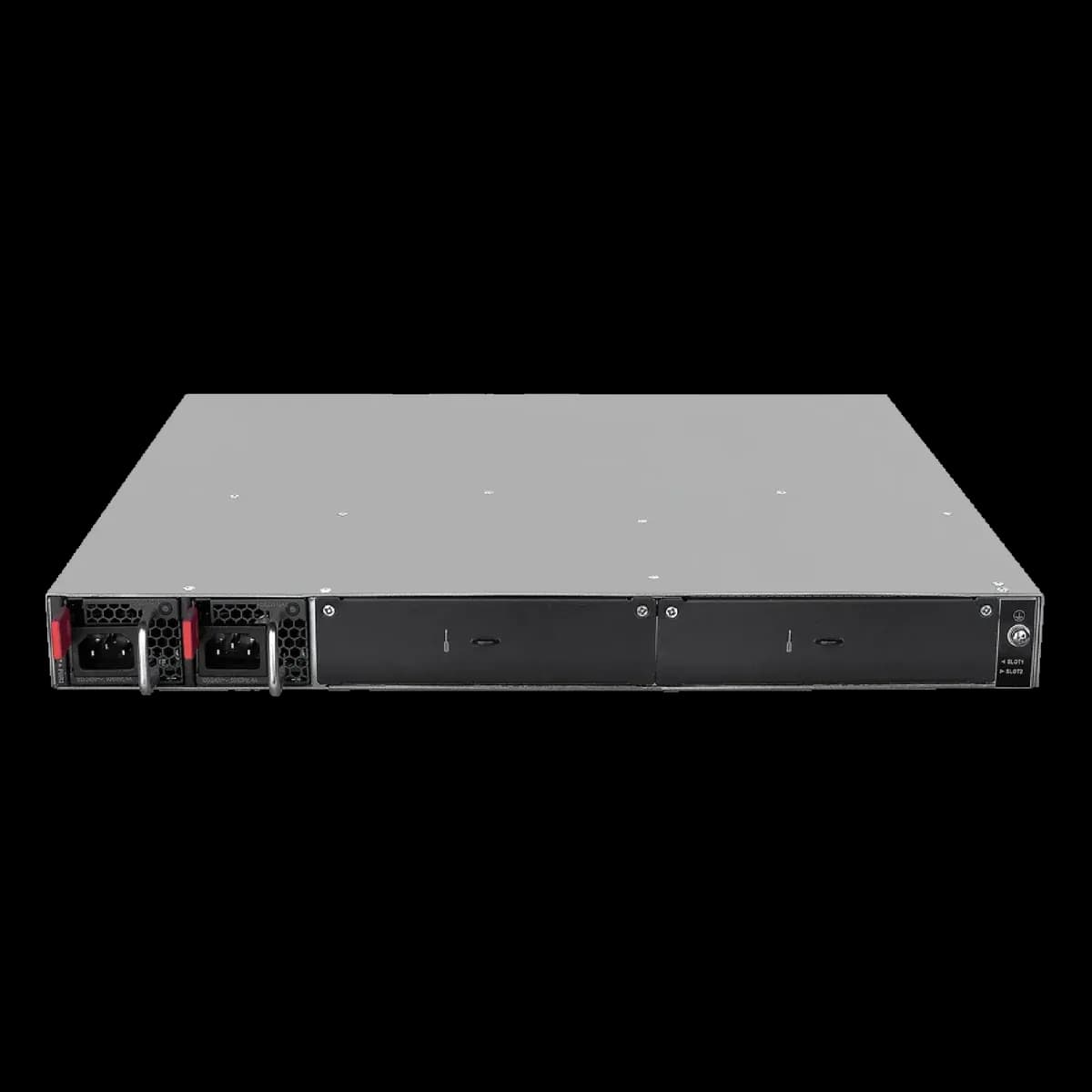

| Power supply | Pluggable power supply 1 + 1 redundant backup Support AC or DC (sold separately) |
| Power consumption | 36W to 132.7W |
| Modulation technology | 802.11b: Direct-sequence spread spectrum (DSSS) 802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM) 802.11ax/be: Orthogonal frequency-division multiple access (OFDMA) |
| Modulation mode | 11b: BPSK, QPSK, CCK 11a/g/n: BPSK, QPSK, 16QAM, 64QAM 11ac: BPSK, QPSK, 16QAM, 64QAM, 256QAM 11ax: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM 11be: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM, 4096QAM |
| Data rates (Mbps) | 802.11b: 1, 2, 5.5, 11 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 802.11n: 6.5 to 600 (NSS = 1 to 4, HT20 to HT40) 802.11ac: 6.5 to 6,933 (MCS0 to MCS9, NSS = 1 to 8, VHT20 to VHT160) 802.11ax: 7.3 to 9,608 (MCS0 to MCS11, NSS = 1 to 8, HE20 to HE160) 802.11be: 7.3 to 23,059 (MCS0 to MCS13, NSS = 1 to 8, EHT20 to EHT320) |
| Reset button | Restoration to factory default |
| Fan | Internal fans |
| Indicators (LED) | LEDs corresponding to different operating states indicate the boot loader status, system status, port status, power module status, and system fault status |
| Temperature | Operating temperature: 0°C to +45°C Storage temperature: –40°C to +70°C |
| Humidity | Operating humidity: 5% to 95% (non-condensing) Storage humidity: 5% to 95% (non-condensing) |
| Protection class | IP20 |
| Operating Altitude | 5000 meters |
| Safety standards | FDA 21 CFR Subchapter J GB 4943.1 UL 62368-1 CAN/CSA C22.2 No 62368-1 IEC 62368-1 EN 62368-1 AS/NZS 62368-1 |
| EMC standards | EN 55032 EN 55035 EN IEC 61000-3-2 EN 61000-3-3 |
| MTBF (25°C) | 83 years |
| MTTR | 1 hours |
| Product capabilities | Basic information / Support 802.11a/b/g/n/ac/ac Wave 2/ax/be |
| AC Operating Mode | AC Mode, managed by H3C intelligent O&M platform |
| Supported Wireless AP | H3C WA6300, WA6500, WA6600, WA7600, WA7500, WA7300, WA7200 Series AP |
| Number of managed APs by default | 0 |
| Maximum number of access points | 768 |
| Maximum number of clients | 15360 |
| Part numbers | EWP-WX3820X, PSR250-12A1-D, LIS-WX-1-BE, LIS-WX-4-BE, LIS-WX-8-BE, LIS-WX-16-BE, LIS-WX-32-BE, LIS-WX-64-BE, LIS-WX-128-BE, LIS-WX-512-BE, LIS-WX-1024-BE, SFP-GE-LX-SM1310-D |
