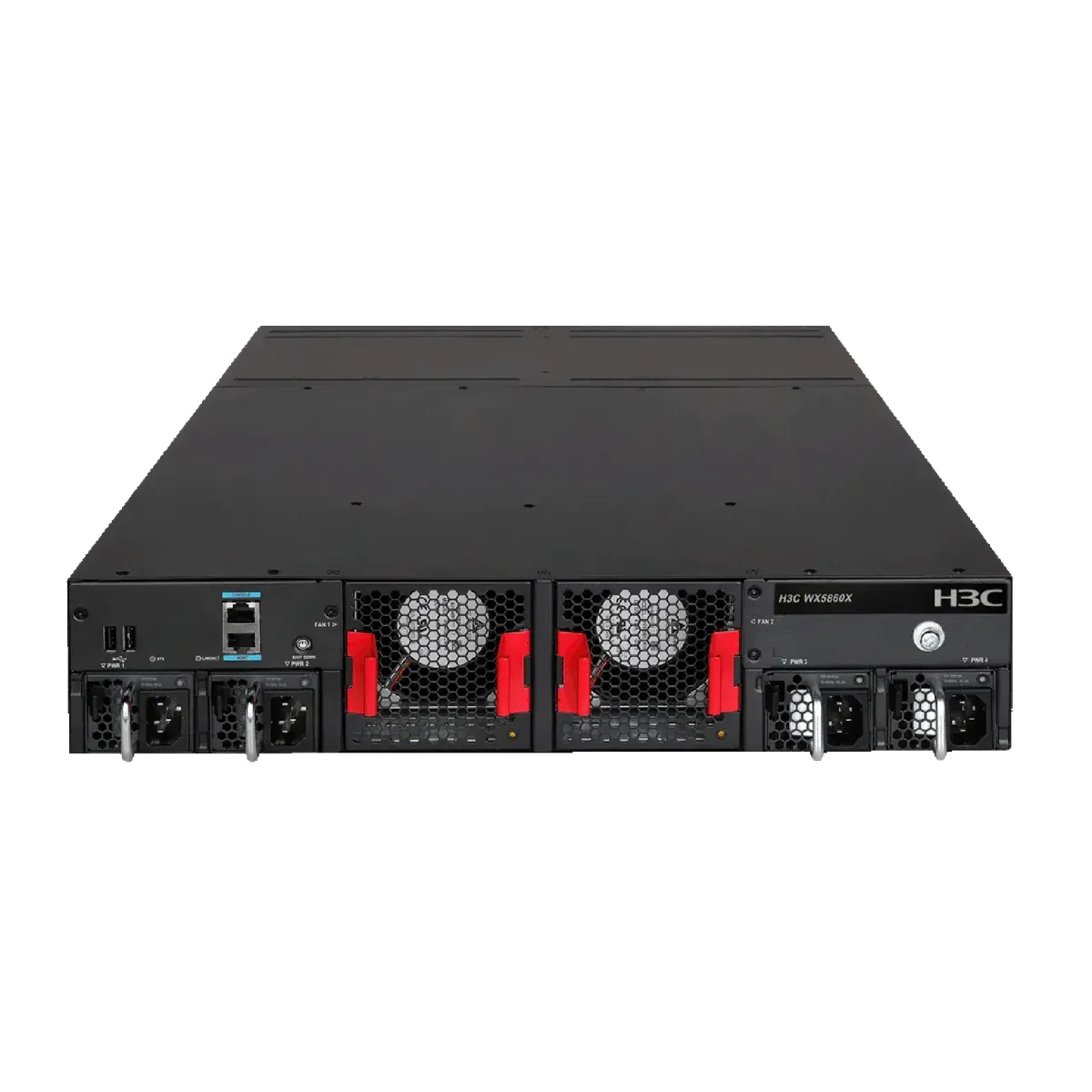

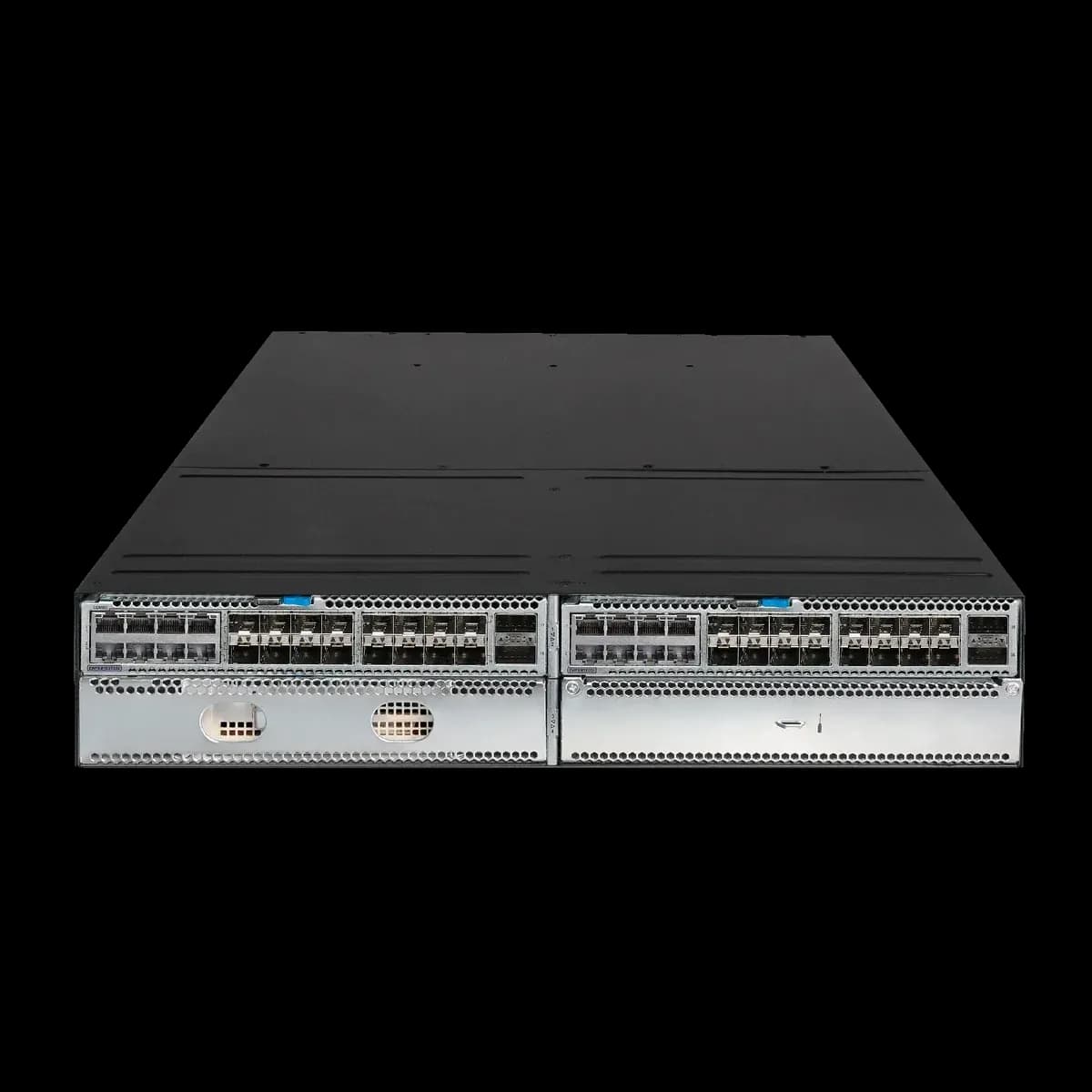

A modular, carrier-class wireless controller managing up to 10,240 APs and 102,400 clients for the largest campuses.
Island-wide delivery to all 25 districts
| Weight | 22.9kg (installed with dual power supplies) |
|---|---|
| Dimensions (W × D × H) | 440 mm × 660 mm × 88.1 mm |
| Interface | Support 2 interface cards at most. Specifications for each card are as follows: 2 x 40G（QSFP+） 8 x 10G（SFP+） 8 x GE Combo (2×40G SFP+ and 8×10G SFP+ are mutuallyexclusive) |
| Console port | 1 x Out-of-Band Management Interface (OOBM) |
| USB port | 2 x USB 2.0 |
| Throughput | 80Gbps/160Gbps |
| Power supply | Removable AC or DC power modules Support for 1+1 or 1+3 power module redundancy (Power module should be purchased separately) Rated input voltage range: 100 to 240 VAC @ 50/60 Hz Max input voltage range: 90 to 264 VAC @ 47 to 63 Hz Max output power: 650 W Rated input voltage range: -48V DC to 60V DC Max output power: 650 W |
| Power consumption | 184W ~ 502W |
| Modulation technology | 802.11b: Direct-sequence spread spectrum (DSSS) 802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM) 802.11ax/be: Orthogonal frequency-division multiple access (OFDMA) |
| Modulation mode | 11b: BPSK, QPSK, CCK 11a/g/n: BPSK, QPSK, 16QAM, 64QAM 11ac: BPSK, QPSK, 16QAM, 64QAM, 256QAM 11ax: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM 11be: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM, 4096QAM |
| Data rates (Mbps) | 802.11b: 1, 2, 5.5, 11 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 802.11n: 6.5 to 600 (NSS = 1 to 4, HT20 to HT40) 802.11ac: 6.5 to 6,933 (MCS0 to MCS9, NSS = 1 to 8, VHT20 to VHT160) 802.11ax: 7.3 to 9,608 (MCS0 to MCS11, NSS = 1 to 8, HE20 to HE160) 802.11be: 7.3 to 23,059 (MCS0 to MCS13, NSS = 1 to 8, EHT20 to EHT320) |
| Reset button | Restoration to factory default |
| Fan | Internal fans |
| Indicators (LED) | LEDs corresponding to different operating states indicate the boot loader status, system status, port status, power module status, and system fault status |
| Temperature | Operating temperature: 0°C to +45°C Storage temperature: –40°C to +70°C |
| Humidity | Operating humidity: 5% to 95% (non-condensing) Storage humidity: 5% to 95% (non-condensing) |
| Protection class | IP20 |
| Operating Altitude | 5000 meters |
| Safety standards | FDA 21 CFR Subchapter J GB 4943.1 UL 62368-1 CAN/CSA C22.2 No 62368-1 IEC 62368-1 EN 62368-1 AS/NZS 62368-1 |
| EMC standards | EN 55032 EN 55035 EN IEC 61000-3-2 EN 61000-3-3 |
| MTBF (25°C) | 52.4 years |
| MTTR | 1 hours |
| Product capabilities | Basic information / Support 802.11a/b/g/n/ac/ac Wave 2/ax/be |
| AC Operating Mode | AC Mode, managed by H3C intelligent O&M platform |
| Supported Wireless AP | H3C WA6300, WA6500, WA6600, WA7600, WA7500, WA7300, WA7200 Series AP |
| Number of managed APs by default | 0 |
| Maximum number of access points | 6656 Expandable to 10240 |
| Maximum number of clients | 102400 |
| Part numbers | EWP-WX5860X, PSR650B-12D1-GL, PSR650B-12A1-D, LIS-WX-1-BE, LIS-WX-4-BE, LIS-WX-8-BE, LIS-WX-16-BE, LIS-WX-32-BE, LIS-WX-64-BE, LIS-WX-128-BE, LIS-WX-512-BE, LIS-WX-1024-BE |
